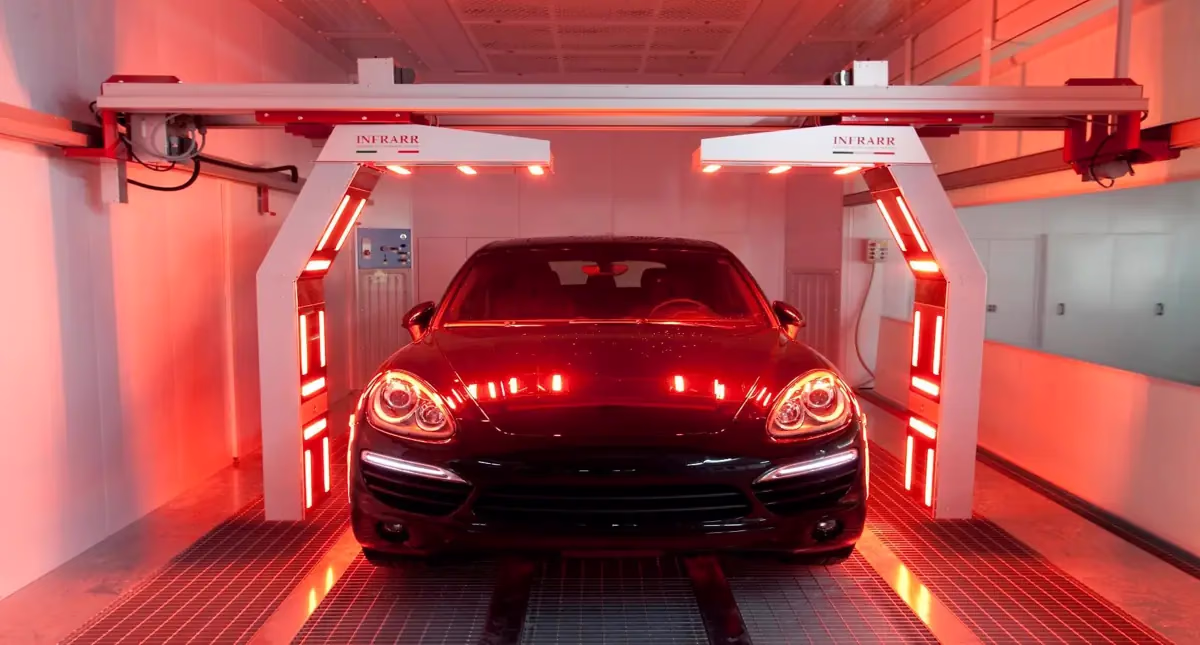

Infrarr infrared arch dryer operating in a spray booth

Infrared & UV-A LED curing · Made in Italy

Infrarr Infrared Paint Dryers

Cut drying times and energy use in your body shop with Infrarr short-wave infrared and UV-A LED curing systems — from hand-held lamps to the fully automatic INFRARR 30K arch. Supplied, installed and serviced across Australia and New Zealand.

Request a QuoteView the Range

The widest range of electric IR dryers

Infrarr has designed and manufactured top-quality electric infrared dryers in Milan, Italy since 1991, working with leading vehicle and paint manufacturers. Its range covers hand-held, mobile, suspended, motorised and robotic arch dryers, so every body shop — from a single-bay repairer to a high-volume collision centre — can speed up the drying cycle and improve the final finish.

The Infrarr range

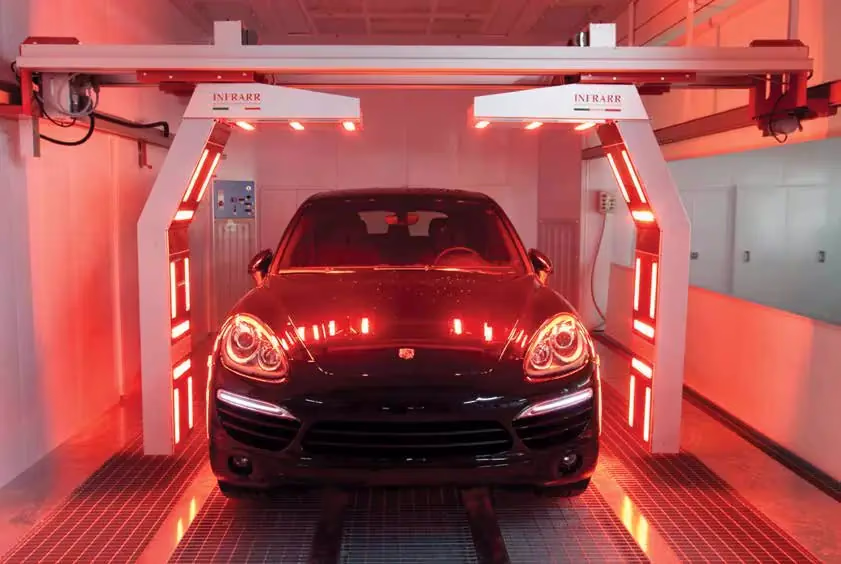

INFRARR 30K automatic infrared arch dryer curing a car inside a spray booth

Automatic · in-booth

INFRARR 30K Arch Dryer

  • Up to 30 kW of professional short-wave IR on aluminium rails
  • Four pyrometers control surface temperature zone by zone
  • Sonar keeps the correct drying distance automatically
  • Touchscreen with editable programs and real-time energy cost
  • Returns to its protective parking cover after each cycle

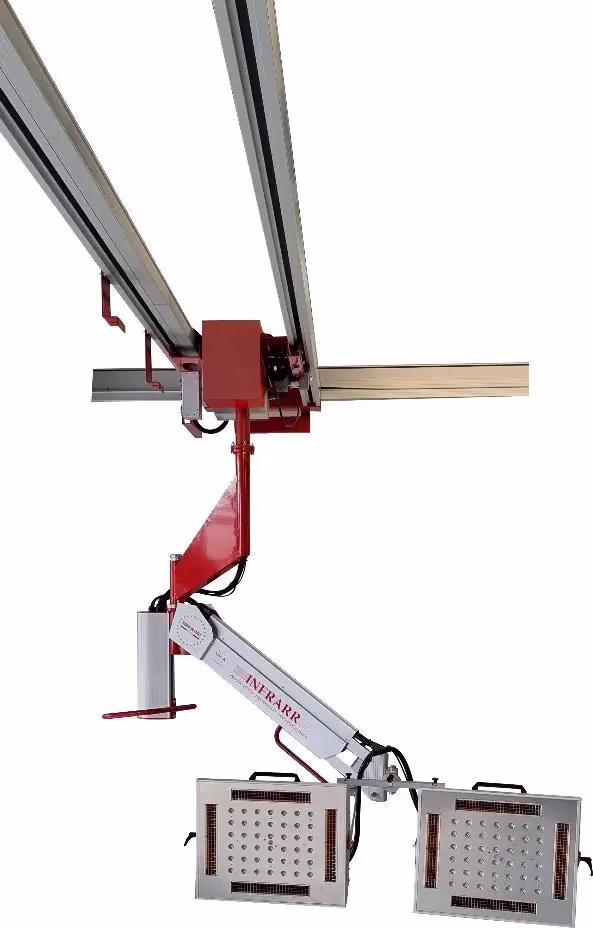

Infrarr suspended infrared dryer on overhead rails with articulated arm

Preparation areas & booths

Suspended Rail Dryers (SR / SR-EVO)

  • Ceiling-mounted on longitudinal and transverse rails
  • Articulated arm reaches every panel without floor clutter
  • Ideal for prep bays feeding a single spray booth
  • Available with IR, UV-A LED or COMBI heads

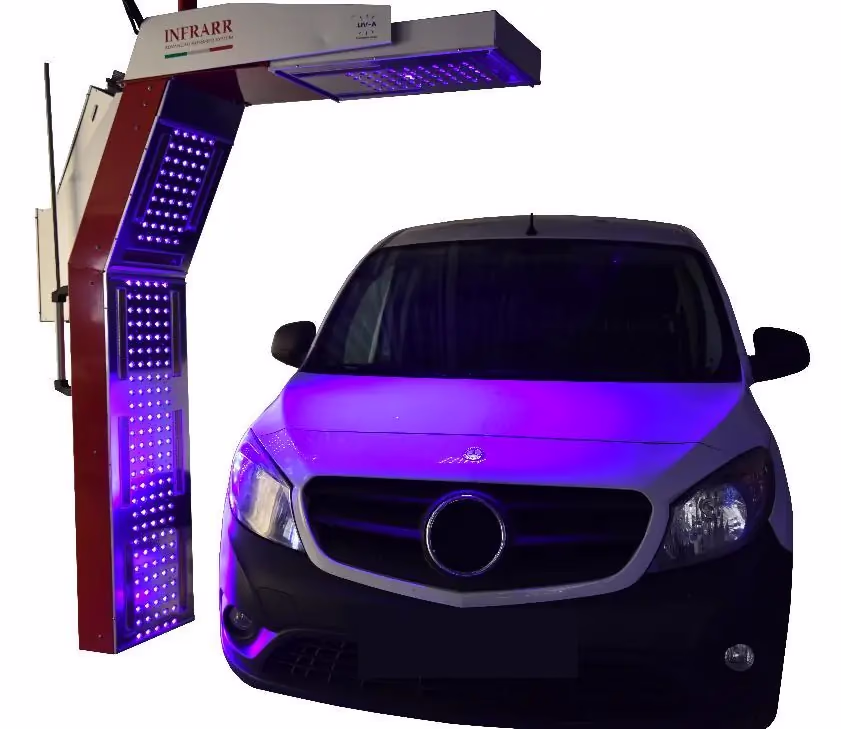

Infrarr UV-A LED semi-arch dryer curing the front of a van

Fast UV curing

UV-A LED & COMBI-Line

  • 395 nm UV-A LED cures UV fillers and primers in under ~2 minutes
  • COMBI models add short-wave IR in the same unit
  • Very low heat on the panel and minimal energy use
  • Hand-held, mobile and overhead versions

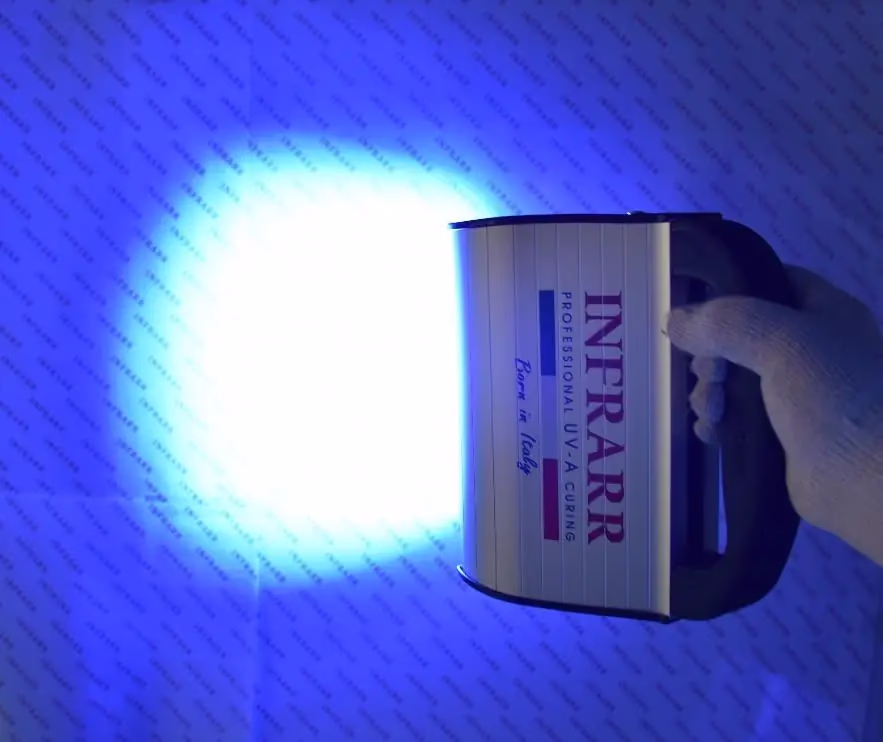

Infrarr UV8 hand-held UV-A LED curing lamp in use

Spot repairs

UV8 Hand-Held & Mobile Dryers

  • UV8: 1.5 kg cordless UV-A LED lamp with ~45 min battery
  • OLED display, overheat protection and battery management
  • PRO-Line mobile IR dryers on wheels for any bay
  • Perfect for SMART repairs and small shops

Why infrared curing?

  • Faster Drying Cycles

    Short-wave IR heats the paint film from within, dramatically cutting drying times and increasing booth cycles per day.

  • Lower Energy Costs

    Only the lamps and area you need are switched on — no heating a whole booth to dry one panel.

  • Temperature Control

    Pyrometers hold a constant substrate temperature, preventing overheating and reducing masking and disassembly.

  • Fits Existing Booths

    Lightweight aluminium structures install in most booths and prep areas without losing working space.

  • Easy to Use

    Pre-set programs, intuitive touchscreens and cycles you can adjust while drying is in progress.

  • Local Install & Service

    Albe Engineering handles electrical connection, installation, commissioning, training and servicing.

Infrarr suspended dryer installed in a body shop spray booth

Installed by automation engineers

Albe Engineering is an industrial automation company, so we look after the whole job: site assessment, rail and structure installation, electrical supply, commissioning, operator training and ongoing servicing.

  • Site and booth assessment before you order
  • Mechanical and electrical installation
  • Commissioning and program set-up for your paint system
  • Operator training and ongoing service

Contact Info

admin@albeengineering.com(+61) 2 5500 5509

Mon–Fri, 9am–5pm AEST

Get pricing for your body shop

Infrarr dryer FAQs

Answers to common questions about our automation services

  • Short-wave infrared (IR) heats the paint film from the inside out and is ideal for primers, fillers, basecoats and clearcoats. UV-A LED cures UV-curable fillers and primers in around 2 minutes with very little heat. COMBI models combine both technologies.

  • Hand-held and mobile dryers suit spot repairs and smaller shops. Suspended rail-mounted dryers suit preparation areas and booths, and the automatic INFRARR 30K arch dryer suits high-volume shops that want full-vehicle drying in the booth.

  • Yes. Infrared dries only the area being repaired, so you avoid heating the whole booth. The INFRARR 30K only switches on the lamp banks needed and displays actual energy use and cost for each cycle.

  • In most cases, yes. The 30K runs on lightweight aluminium rails fixed to the walls or ceiling and is designed to fit existing booths and preparation areas without reducing working space. We assess your booth before quoting.

  • Yes. Albe Engineering supplies, installs, commissions and services Infrarr dryers across Australia and New Zealand.
